The Strategic Advantages of High‑Cavitation Molds in Injection Molding
1. What “cavitation” means and why it matters

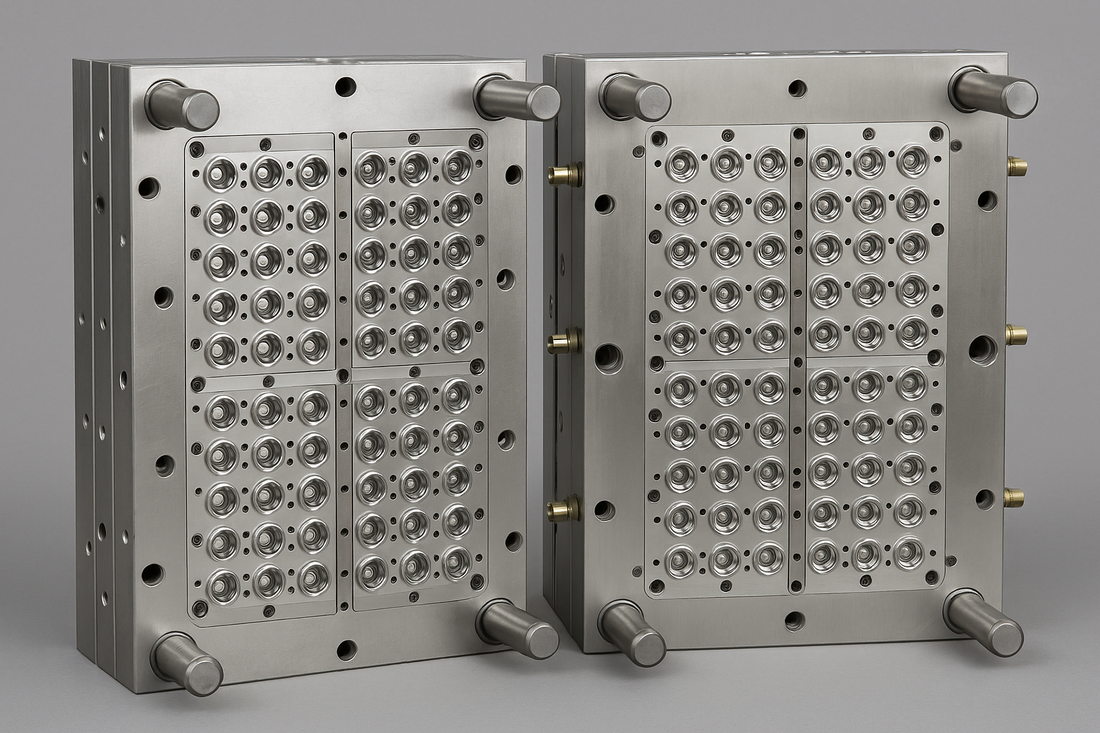

In an injection‑mold tool, cavitation refers to the number of cavities that simultaneously produce parts in every molding cycle. A 4‑cavity mold yields four parts per shot, a 32‑cavity mold yields thirty‑two, and so on. “High cavitation” has no rigid cut‑off, but in most commercial contexts it begins at 16-32 cavities and can extend to 96, 128, or more for small precision components.
2. Core business benefits
|
Benefit |
How high cavitation delivers it |
Typical impact |
|
Lower cost per part |
Spreads fixed costs (mold amortization, machine time, labor, overhead) across a larger output each cycle. |
20-60 % reduction versus medium‑cavitation molds, depending on resin and press size. |
|
Higher throughput without new presses |
Multiplies part count per shot, lifting hourly output while the cycle time remains nearly constant. |
2-8× more parts per hour; extends the productive life of existing capital equipment. |
|
Faster payback period |
Although initial mold tooling is more expensive, accelerated volume ramps shorten ROI timelines. |
Payback often < 12 months for commodities; < 18 months for regulated components. |
|
Improved lot‑to‑lot consistency |
All parts in a shot experience identical residence time and thermal history, minimizing within‑lot variation that can creep in with sequential runs. |
Critical for medical, diagnostics, and thin‑wall packaging. |
|
Lean‑manufacturing alignment |
Fewer changeovers, less WIP inventory, and better press utilization support just‑in‑time (JIT) production. |
Press OEE (overall equipment effectiveness) gains of 5–15 %. |
|
Lower carbon footprint per unit |
Energy, compressed‑air, and chiller loads scale more slowly than part count; life‑cycle assessments show kWh/part can drop 30 %+. |
Supports sustainability and corporate‑ESG targets. |
3. Technical enablers and design considerations
|
Area |
High‑cavitation requirement |
Best‑practice approach |
|
Runner balance / melt delivery |
Uniform pressure and temperature to every cavity. |
Hot‑runner systems with valve gates, sequential filling analysis in Moldflow®, tight ±0.01 mm gate‑diameter tolerances. |
|
Cooling efficiency |
Heat must be extracted equally across a large plate. |
Conformal cooling with additive‑manufactured inserts, beryllium‑copper (BeCu) cores for hot spots, dedicated high‑flow chillers. |
|
Plate flatness & stack‑up |
Parting‑line deflection causes flash at higher clamp forces. |
FEA‑validated support pillars, pre‑hardened tool steel (H13 or S136) to 48–50 HRC, in‑press strain‑gauge validation. |
|
Maintenance & reliability |
More moving components (ejectors, lifters) amplify downtime risk. |
Standardize wear items, implement cavity‑level sensor arrays (pressure, temp), schedule predictive rebuilds every X million cycles. |
|
Press selection |
Press tonnage scales with projected area × # cavities. |
Use electric or hybrid presses for speed and energy recovery; servo‑hydraulic clamps for >400 t applications. |
4. Cost‑Benefit snapshot (illustrative)
|
Parameter |
Medium cav. (8‑cav.) |
High cav. (64‑cav.) |
|
Shots per minute |
20 |
18 (slightly slower) |
|
Parts per hour |
9,600 |
69,120 |
|
Tooling cost |
$120 k |
$600 k |
|
Cost per part over 30 million pcs (tool + molding only) |
$0.0108 |
$0.0032 |
|
Payback at $0.015 sales margin |
18 months |
7 months |
Assumptions: 2.5 g PP part, 0.30 s injection + 1.8 s cooling, $60/h press rate.
5. When a high‑cavitation strategy excels
- Annual demand ≥ 10 million parts. Below this, mold amortization may dominate.
- Small, thermally forgiving parts. Lids, pipette tips, closures, microfluidic devices.
- Regulated industries with tight CoV (Cpk ≥ 1.67). Medical & pharma benefit from the lot consistency.
- Automation‑ready plants. Robots and stackers keep cycle time stable and labor minimal.
- Limited floor space. One 400‑ton press + 96‑cavity tool often replaces four 200‑ton cells.
6. Potential pitfalls-and how to mitigate them
|
Pitfall |
Mitigation |
|
Sticker shock on tooling |
Conduct discounted‑cash‑flow analysis; many OEMs finance molds or bundle into piece‑part pricing. |
|
Longer build & qualification timeline |
Engage toolmakers early; run Design for Manufacturability (DfM) concurrently with part design. |
|
Resin shear degradation |
Choose screw/barrel profile for lower shear rates; use valve‑gated hot runners to minimize residence time. |
|
Complex mold‑change logistics |
Modular cavity inserts allow running reduced cavity sets during development or maintenance. |
7. Conclusion: a leverage point for competitive advantage
High‑cavitation tooling transforms the economics of injection molding by converting machine time into exponential output gains while maintaining or improving quality. For enterprises with sustained high‑volume demand, the strategy unlocks lower per‑unit cost, leaner operations, and a smaller environmental footprint. The upfront investment is real, but so is the payback: when properly engineered and maintained, a high‑cavitation mold can run tens of millions of cycles, quietly compounding margin on every shot.
